com.maxst.ar.WearableCalibration Class Reference

Collaboration diagram for com.maxst.ar.WearableCalibration:

Classes
enum	DistanceType
enum	EyeType

Public Member Functions
boolean	init (String modelName, int targetWidth, int targetHeight)
boolean	isActivated ()
void	setSurfaceSize (int surfaceWidth, int surfaceHeight)
void	deinit ()
float []	getViewport (EyeType eyeType)
float []	getProjectionMatrix (int eyeType)
boolean	writeProfile (String filePath)
boolean	readProfile (String filePath)
void	loadDefaultProfile (String modelName)
boolean	setProfile (byte[] data)
boolean	readActiveProfile (Context context, String wearableDeviceName)
void	getDistancePos (DistanceType distanceType, float[] pos)
void	setCameraToEyePose (EyeType eyeType, DistanceType distanceType, float[] pose)
float []	getScreenCoordinate ()
void	getTargetGLScale (DistanceType distanceType, float[] scale)
void	getTargetGLPosition (DistanceType distanceType, float[] position)

Static Public Member Functions
static WearableCalibration	getInstance ()

Detailed Description

Contains information of WearableCalibration

Member Function Documentation

deinit()

void com.maxst.ar.WearableCalibration.deinit

(

)

Deinitialize the HMD device.

getDistancePos()

void com.maxst.ar.WearableCalibration.getDistancePos	(	DistanceType	distanceType,
		float []	pos
	)

Set target distance for wearable calibration

Parameters

distanceType	Target distance type
pos	Target rendering position

Here is the call graph for this function:

getInstance()

static WearableCalibration com.maxst.ar.WearableCalibration.getInstance ( )

static

Get WearableCalibration instance

Returns

WearableCalibration class instance

getProjectionMatrix()

float [] com.maxst.ar.WearableCalibration.getProjectionMatrix

(

int

eyeType

)

Get HMD projection Matrix.

Parameters

eyeType

Types of HMD eyes

Returns

projection matrix array(float type array, size 16).

getScreenCoordinate()

float [] com.maxst.ar.WearableCalibration.getScreenCoordinate

(

)

getTargetGLPosition()

void com.maxst.ar.WearableCalibration.getTargetGLPosition	(	DistanceType	distanceType,
		float []	position
	)

Here is the call graph for this function:

getTargetGLScale()

void com.maxst.ar.WearableCalibration.getTargetGLScale	(	DistanceType	distanceType,
		float []	scale
	)

Here is the call graph for this function:

getViewport()

float [] com.maxst.ar.WearableCalibration.getViewport

(

EyeType

eyeType

)

Get HMD screen viewport.

Parameters

eyeType

Types of HMD eyes

Returns

Viewport array(int type array, size 4).

Here is the call graph for this function:

init()

boolean com.maxst.ar.WearableCalibration.init	(	String	modelName,
		int	targetWidth,
		int	targetHeight
	)

Initialize the HMD device.

Parameters

modelName	Device name
targetWidth	Calibration target width
targetHeight	Calibration target height

Returns

Result of device initialize

isActivated()

boolean com.maxst.ar.WearableCalibration.isActivated

(

)

Confirm that the HMD unit is initialized.

Returns

Result of device initialize

loadDefaultProfile()

void com.maxst.ar.WearableCalibration.loadDefaultProfile

(

String

modelName

)

Here is the caller graph for this function:

readActiveProfile()

boolean com.maxst.ar.WearableCalibration.readActiveProfile	(	Context	context,
		String	wearableDeviceName
	)

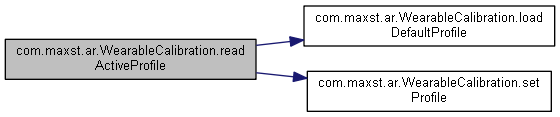

Here is the call graph for this function:

readProfile()

boolean com.maxst.ar.WearableCalibration.readProfile

(

String

filePath

)

Read wearable calibration profile.

Parameters

filePath

Calibration file path

Returns

Result of file read.

setCameraToEyePose()

void com.maxst.ar.WearableCalibration.setCameraToEyePose	(	EyeType	eyeType,
		DistanceType	distanceType,
		float []	pose
	)

Parameters

eyeType	Types of HMD eyes
distanceType	Type of target distance
pose	Pose matrix

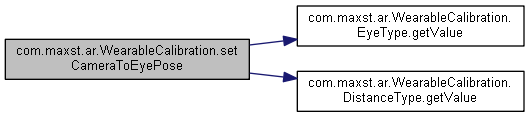

Here is the call graph for this function:

setProfile()

boolean com.maxst.ar.WearableCalibration.setProfile

(

byte []

data

)

Set wearable calibration profile array.

Parameters

data	profile array

Returns

Result of file read.

Here is the caller graph for this function:

setSurfaceSize()

void com.maxst.ar.WearableCalibration.setSurfaceSize	(	int	surfaceWidth,
		int	surfaceHeight
	)

Set the HMD device screen size.

Parameters

surfaceWidth	Screen width
surfaceHeight	Screen height

writeProfile()

boolean com.maxst.ar.WearableCalibration.writeProfile

(

String

filePath

)

Write wearable calibration profile.

Parameters

filePath

Calibration file path

Returns

Result of file write.

---

The documentation for this class was generated from the following file:

• E:/Workspace/MaxstARSDK/Platform/MaxstARAndroid/MaxstAR/src/main/java/com/maxst/ar/WearableCalibration.java
