maxstAR.AbstractARManager Class Reference

Initialize system environment with app key, screen size and orientation More...

Inheritance diagram for maxstAR.AbstractARManager:

Collaboration diagram for maxstAR.AbstractARManager:

Public Types
enum	WorldCenterMode { WorldCenterMode.CAMERA = 0, WorldCenterMode.TARGET = 1 }
	The world center mode defines what is the center in game view. If camera is world center then trackable's transform is changed when tracking success. If traget is world center then main camera's transform is chagned when tracking success. More...

Public Member Functions
void	SetWorldCenterMode (WorldCenterMode worldCenterMode)
	Set world center mode More...

Protected Member Functions
virtual void	Awake ()
	Intialize sdk More...
void	Init ()
	Set device orientation and surface size More...
virtual void	OnDestroy ()
	Release sdk More...

Properties
WorldCenterMode	WorldCenterModeSetting [get]
	Get world center mode value More...

Detailed Description

Initialize system environment with app key, screen size and orientation

Member Enumeration Documentation

WorldCenterMode

enum maxstAR.AbstractARManager.WorldCenterMode

strong

The world center mode defines what is the center in game view. If camera is world center then trackable's transform is changed when tracking success. If traget is world center then main camera's transform is chagned when tracking success.

Enumerator
CAMERA	Camera is world center
TARGET	Target is world center

Member Function Documentation

Awake()

virtual void maxstAR.AbstractARManager.Awake ( )

protectedvirtual

Intialize sdk

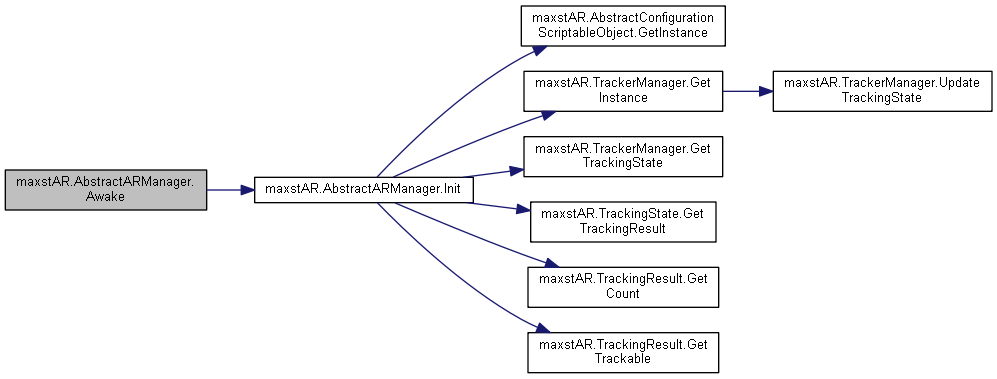

Here is the call graph for this function:

Init()

void maxstAR.AbstractARManager.Init ( )

protected

Set device orientation and surface size

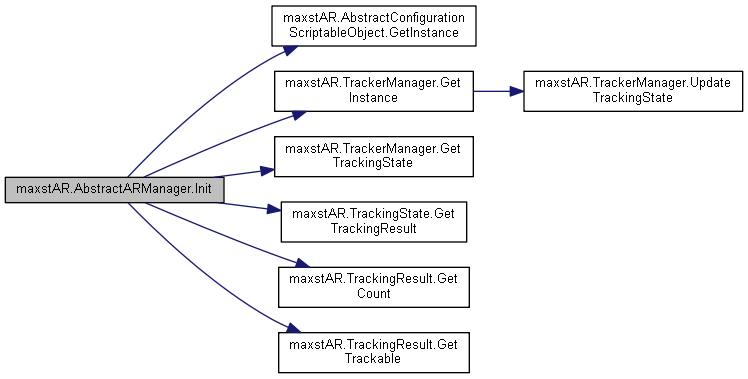

Here is the call graph for this function:

Here is the caller graph for this function:

OnDestroy()

virtual void maxstAR.AbstractARManager.OnDestroy ( )

protectedvirtual

Release sdk

SetWorldCenterMode()

void maxstAR.AbstractARManager.SetWorldCenterMode

(

WorldCenterMode

worldCenterMode

)

Set world center mode

Parameters

worldCenterMode

World center enum value

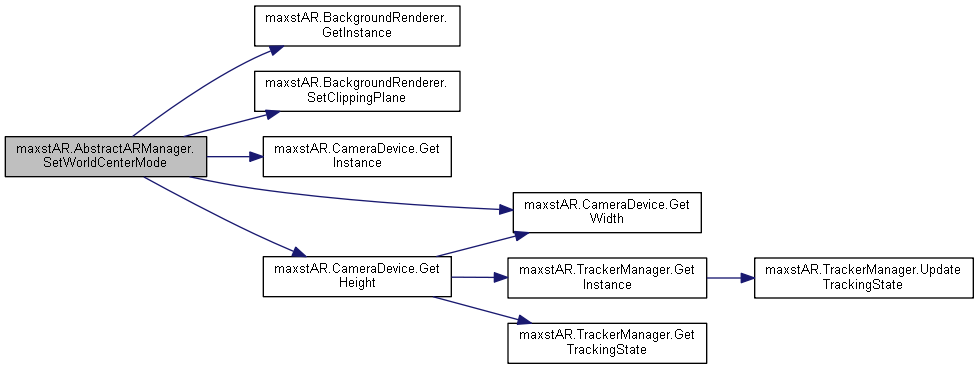

Here is the call graph for this function:

Here is the caller graph for this function:

Property Documentation

WorldCenterModeSetting

WorldCenterMode maxstAR.AbstractARManager.WorldCenterModeSetting

get

Get world center mode value

---

The documentation for this class was generated from the following file:

• E:/Workspace/MaxstARSDK/MaxstARUnityWrapper/AbstractARManager.cs
