maxstAR.CameraDevice Class Reference

class for camera device handling More...

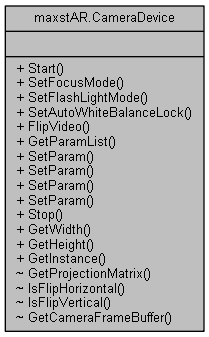

Collaboration diagram for maxstAR.CameraDevice:

Public Types
enum	FocusMode { FocusMode.FOCUS_MODE_CONTINUOUS_AUTO = 1, FocusMode.FOCUS_MODE_AUTO = 2 }
	Camera focus mode More...
enum	CameraType { CameraType.Rear = 0, CameraType.Face = 1 }
	Supported camera type (Mobile only) More...
enum	CameraResolution { CameraResolution.Resolution640x480, CameraResolution.Resolution1280x720 }
	Supported camera resolution More...
enum	FlipDirection { FlipDirection.HORIZONTAL = 0, FlipDirection.VERTICAL = 1 }
	Flip video More...

Public Member Functions
ResultCode	Start ()
	Start camera preview More...
bool	SetFocusMode (FocusMode focusMode)
	Set camera focus mode More...
bool	SetFlashLightMode (bool toggle)
	Turn on/off flash light More...
bool	SetAutoWhiteBalanceLock (bool toggle)
	Toggle auto white balance lock (Android only supported now) More...
void	FlipVideo (FlipDirection direction, bool on)
	Flip video background More...
List< string >	GetParamList ()
	Get parameter key list (Android only supported now) More...
bool	SetParam (string key, bool boolTypeValue)
	Set camera parameter (Android only supported now) More...
bool	SetParam (string key, int intTypeValue)
	Set camera parameter (Android only supported now) More...
bool	SetParam (string key, int min, int max)
	Set camera parameter (Android only supported now) More...
bool	SetParam (string key, string stringTypeValue)
	Set camera parameter (Android only supported now) More...
void	Stop ()
	Stop camera preview More...
int	GetWidth ()
int	GetHeight ()

Static Public Member Functions
static CameraDevice	GetInstance ()
	Get a CameraDevice instance. More...

Detailed Description

class for camera device handling

Member Enumeration Documentation

CameraResolution

enum maxstAR.CameraDevice.CameraResolution

strong

Supported camera resolution

Enumerator
Resolution640x480	640 * 480 (4:3 Resolution)
Resolution1280x720	1280 * 720 (16:9 Resolution)

CameraType

enum maxstAR.CameraDevice.CameraType

strong

Supported camera type (Mobile only)

Enumerator
Rear	Rear camera
Face	Face camera

FlipDirection

enum maxstAR.CameraDevice.FlipDirection

strong

Flip video

Enumerator
HORIZONTAL	Horizontal flip
VERTICAL	Vertical flip

FocusMode

enum maxstAR.CameraDevice.FocusMode

strong

Camera focus mode

Enumerator
FOCUS_MODE_CONTINUOUS_AUTO	Continuous focus mode. This focus mode is proper for AR
FOCUS_MODE_AUTO	Single auto focus mode

Member Function Documentation

FlipVideo()

void maxstAR.CameraDevice.FlipVideo	(	FlipDirection	direction,
		bool	on
	)

Flip video background

Parameters

direction	Flip direction
on	True to set. False to rest

GetHeight()

int maxstAR.CameraDevice.GetHeight

(

)

Returns

get camera preview height

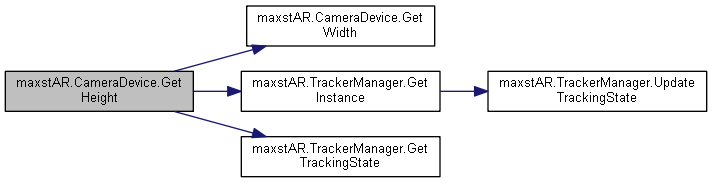

Here is the call graph for this function:

Here is the caller graph for this function:

GetInstance()

static CameraDevice maxstAR.CameraDevice.GetInstance ( )

static

Get a CameraDevice instance.

Returns

Return the CameraDevice instance

Here is the caller graph for this function:

GetParamList()

List<string> maxstAR.CameraDevice.GetParamList

(

)

Get parameter key list (Android only supported now)

Returns

parameter key list

GetWidth()

int maxstAR.CameraDevice.GetWidth

(

)

Returns

get camera preview width

Here is the caller graph for this function:

SetAutoWhiteBalanceLock()

bool maxstAR.CameraDevice.SetAutoWhiteBalanceLock

(

bool

toggle

)

Toggle auto white balance lock (Android only supported now)

SetFlashLightMode()

bool maxstAR.CameraDevice.SetFlashLightMode

(

bool

toggle

)

Turn on/off flash light

SetFocusMode()

bool maxstAR.CameraDevice.SetFocusMode

(

FocusMode

focusMode

)

Set camera focus mode

Parameters

focusMode

Returns

SetParam() [1/4]

bool maxstAR.CameraDevice.SetParam	(	string	key,
		bool	boolTypeValue
	)

Set camera parameter (Android only supported now)

Parameters

key	Parameter key
boolTypeValue	Parameter value

Returns

True if setting success

SetParam() [2/4]

bool maxstAR.CameraDevice.SetParam	(	string	key,
		int	intTypeValue
	)

Set camera parameter (Android only supported now)

Parameters

key	Parameter key
intTypeValue	Parameter value

Returns

True success

SetParam() [3/4]

bool maxstAR.CameraDevice.SetParam	(	string	key,
		int	min,
		int	max
	)

Set camera parameter (Android only supported now)

Parameters

key	Parameter key
min	min value
max	min value

Returns

True success

SetParam() [4/4]

bool maxstAR.CameraDevice.SetParam	(	string	key,
		string	stringTypeValue
	)

Set camera parameter (Android only supported now)

Parameters

key	Parameter key
stringTypeValue	Parameter value

Returns

True if setting success

Start()

ResultCode maxstAR.CameraDevice.Start

(

)

Start camera preview

Here is the call graph for this function:

Stop()

void maxstAR.CameraDevice.Stop

(

)

Stop camera preview

---

The documentation for this class was generated from the following file:

• E:/Workspace/MaxstARSDK/MaxstARUnityWrapper/CameraDevice.cs
