MasTrackerManager Class Reference

Control AR Engine. More...

#import <MasTrackerManager.h>

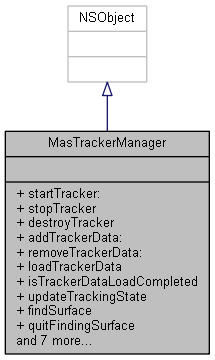

Inheritance diagram for MasTrackerManager:

Collaboration diagram for MasTrackerManager:

Instance Methods
(void)	- startTracker:
	Start AR engine. Only one tracking engine could be run at one time. More...
(void)	- stopTracker
	Stop tracking engine. More...
(void)	- destroyTracker
	Remove all tracking data (Map data and tracking result) More...
(void)	- addTrackerData:
	Add map file to candidate list. More...
(void)	- removeTrackerData:
	Remove map file from candidate list. More...
(void)	- loadTrackerData
	Load map files in candidate list to memory. This method don't block main(UI) thread. More...
(bool)	- isTrackerDataLoadCompleted
	Get map files loading state. This is for UI expression. More...
(MasTrackingState *)	- updateTrackingState
(void)	- findSurface
	Start to find the surface of an environment from a camera image. More...
(void)	- quitFindingSurface
	Stop to find the surface. More...
(MasSurfaceThumbnail *)	- saveSurfaceData:
	Save the surface data to file. More...
(void)	- getWorldPositionFromScreenCoordinate:world:
	Get 3d world coordinate corresponding to given 2d screen position. More...
(int)	- getKeyframeCount
	Get the number of keyframes included in surface data. More...
(int)	- getFeatureCount
	Get the number of features included in surface data. More...
(MasSurfaceMesh *)	- getSurfaceMesh
	Get surface mesh information of the found surface after the findSurface method has been called. More...
(void)	- setTrackingOption:
	Set tracking options. 1, 2, 4 cannot run simultaneously. More...
(void)	- saveFrames

Protected Types
enum	TrackerType : int {   TRACKER_TYPE_CODE_SCANNER = 0x01, TRACKER_TYPE_IMAGE = 0x02, TRACKER_TYPE_OBJECT = 0X08, TRACKER_TYPE_SLAM = 0x10,   TRACKER_TYPE_INSTANT = 0x20 }
	Tracker Type TRACKER_TYPE_CODE_SCANNER Code scanner TRACKER_TYPE_IMAGE Planar image tracker TRACKER_TYPE_OBJECT Object tracker (Object data should be created via SLAM tracker) TRACKER_TYPE_SLAM Visual slam tracker (Can create surface data and save it) TRACKER_TYPE_INSTANT Instant tracker. More...
enum	TrackingOption : int { NORMAL_TRACKING = 0x01, EXTENDED_TRACKING = 0x02, MULTI_TRACKING = 0x04 }
	Additional tracking option. NORMAL_TRACKING Normal Tracking (Image Tracker Only) EXTENDED_TRACKING Extended Tracking (Image Tracker Only) MULTI_TRACKING Multi Target Tracking (Image Tracker Only) More...

Detailed Description

Control AR Engine.

Member Enumeration Documentation

TrackerType

- (enum TrackerType) :

protected

Tracker Type TRACKER_TYPE_CODE_SCANNER Code scanner TRACKER_TYPE_IMAGE Planar image tracker TRACKER_TYPE_OBJECT Object tracker (Object data should be created via SLAM tracker) TRACKER_TYPE_SLAM Visual slam tracker (Can create surface data and save it) TRACKER_TYPE_INSTANT Instant tracker.

Enumerator
TRACKER_TYPE_CODE_SCANNER
TRACKER_TYPE_IMAGE
TRACKER_TYPE_OBJECT
TRACKER_TYPE_SLAM
TRACKER_TYPE_INSTANT

TrackingOption

- (enum TrackingOption) :

protected

Additional tracking option. NORMAL_TRACKING Normal Tracking (Image Tracker Only) EXTENDED_TRACKING Extended Tracking (Image Tracker Only) MULTI_TRACKING Multi Target Tracking (Image Tracker Only)

Enumerator
NORMAL_TRACKING
EXTENDED_TRACKING
MULTI_TRACKING

Method Documentation

addTrackerData:()

- (void) addTrackerData:

(NSString *)

trackingFileName

Add map file to candidate list.

Parameters

trackingFileName

absolute file path

destroyTracker()

- (void) destroyTracker

Remove all tracking data (Map data and tracking result)

findSurface()

- (void) findSurface

Start to find the surface of an environment from a camera image.

getFeatureCount()

- (int) getFeatureCount

Get the number of features included in surface data.

Returns

feature point count

getKeyframeCount()

- (int) getKeyframeCount

Get the number of keyframes included in surface data.

Returns

key frame count

getSurfaceMesh()

- (MasSurfaceMesh*) getSurfaceMesh

Get surface mesh information of the found surface after the findSurface method has been called.

Returns

MasSurfaceMesh instance

getWorldPositionFromScreenCoordinate:world:()

- (void) getWorldPositionFromScreenCoordinate:		(float *)	screen
world:		(float *)	world

Get 3d world coordinate corresponding to given 2d screen position.

Parameters

screen	screen touch x, y position
world	world position x, y, z

isTrackerDataLoadCompleted()

- (bool) isTrackerDataLoadCompleted

Get map files loading state. This is for UI expression.

Returns

true if map loading is completed

loadTrackerData()

- (void) loadTrackerData

Load map files in candidate list to memory. This method don't block main(UI) thread.

quitFindingSurface()

- (void) quitFindingSurface

Stop to find the surface.

removeTrackerData:()

- (void) removeTrackerData:

(NSString *)

trackingFileName

Remove map file from candidate list.

Parameters

trackingFileName

map file name. This name should be same which added. If set "" (empty) file list will be cleared.

saveFrames()

- (void) saveFrames

saveSurfaceData:()

- (MasSurfaceThumbnail*) saveSurfaceData:

(NSString *)

outputFileName

Save the surface data to file.

Parameters

outputFileName

file path (should be absolute path)

Returns

MasSurfaceThumbnail instance if true else null

setTrackingOption:()

- (void) setTrackingOption:

(TrackingOption)

option

Set tracking options. 1, 2, 4 cannot run simultaneously.

Parameters

option

1 : Normal Tracking (Image Tracker Only) 2 : Extended Tracking (Image Tracker Only) 4 : Multiple Target Tracking (Image Tracker Only)

startTracker:()

- (void) startTracker:

(TrackerType)

trackerMask

Start AR engine. Only one tracking engine could be run at one time.

Parameters

trackerMask

tracking engine type

stopTracker()

- (void) stopTracker

Stop tracking engine.

updateTrackingState()

- (MasTrackingState*) updateTrackingState

Update tracking state. This function should be called before getTrackingResult and background rendering

Returns

Tracking state container

---

The documentation for this class was generated from the following file:

• E:/Workspace/MaxstARSDK/MaxstAR/MaxstARiOS/MasTrackerManager.h
